APFC Panels & SVG (Static Var Generator)
Embark Power Pvt Ltd
Precision Reactive Power Management for Modern Industries
At Embark Power Pvt Ltd, we deliver cutting-edge solutions in power quality and energy efficiency. Our APFC Panels (Automatic Power Factor Correction) and SVG (Static Var Generator) are engineered to:
-
Improve power factor and avoid utility penalties
-
Reduce energy bills
-
Minimize harmonics and network instability
-
Enhance overall plant performance

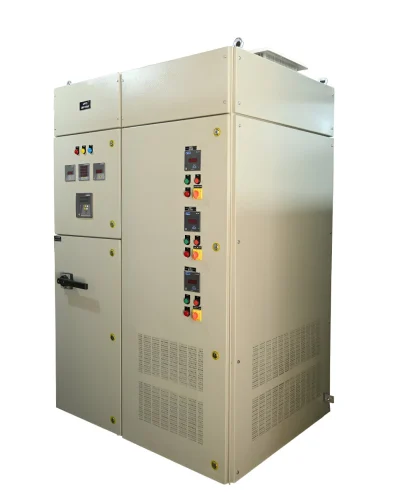

APFC Panels (Automatic Power Factor Correction)
APFC Panels are microcontroller or PLC-based systems designed to automatically maintain the desired power factor by switching capacitor banks in and out of the system.
Key Features:
Fast switching via contactor or thyristor (TSC)
Detuned reactors (189 Hz/134 Hz) to limit harmonics
Intelligent PF controller with auto/learn modes
Industrial-grade protection with MCCB/MCB and copper busbars
Improves power factor to ≥ 0.98 (site dependent)
Available in IP20 to IP54 enclosures
Technical Range:
kVAr Rating: 50 – 1200 kVAr (modular)
Steps: Up to 12/16 (customizable)
Operating Voltage: 415 V (3-phase), others on request
Protections: Over/Under voltage, THD alert, temperature, fuse/MCCB

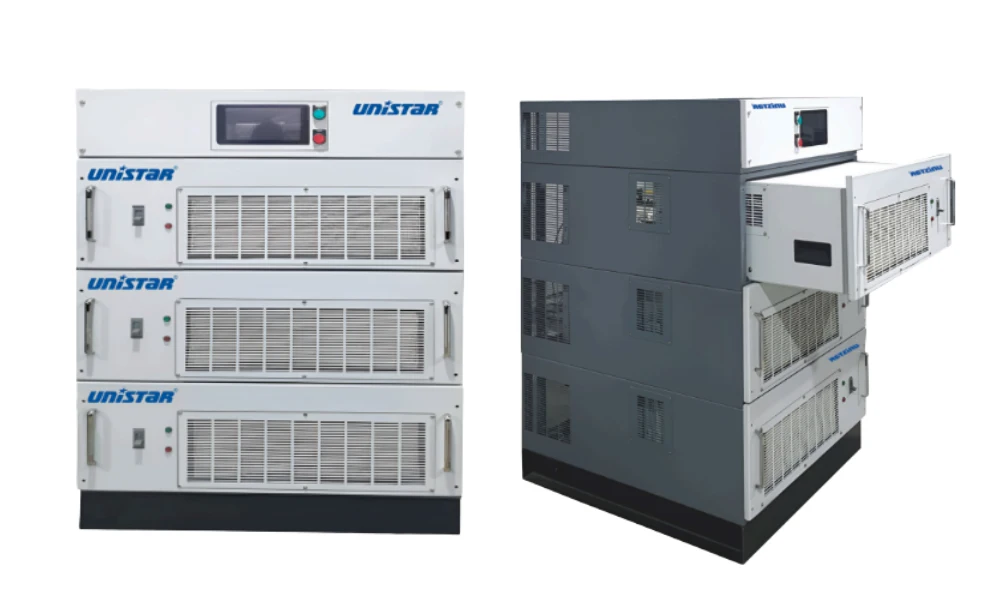

SVG (Static Var Generator)
SVGs are IGBT-based, inverter-driven solutions that dynamically inject or absorb reactive current in real time. Unlike APFC Panels, SVG offers stepless power factor correction, harmonic mitigation, and load balancing for highly dynamic, non-linear loads.
Key Features:
Ultra-fast response time (<20 ms)
Stepless ±1 p.u. (per unit) reactive current injection
Harmonic filtering & unbalance correction
Maintains PF up to 0.99 (lead/lag)
Modular & scalable design (parallel up to Mvar {megavolt-ampere reactive})
Ideal for cranes, elevators, VFDs, welders, data centers
Technical Range:
kVAr Rating: 30 – 3000 kVAr (scalable)
Operating Voltage: 400/415 V (MV on request)
Topology: 2-level IGBT / 3-level NPC
Response Time: <20 ms
THDi: <3% (site dependent)
Communication: Modbus RTU / TCP (optional)
Why Choose Embark Power Pvt Ltd?
- Proven expertise in power conditioning & industrial energy solutions
- 500+ successful installations across industries
- Joint venture with Vijayshri Engineers Pvt Ltd for manufacturing excellence
End-to-end support: Design → Supply → Installation → After-sales service.
