Product Range

At Embark Power (P) Limited we manufacture various power conditioning equipment based on IGBT Pulse Width Modulation (PWM) Technology. Our product range includes:

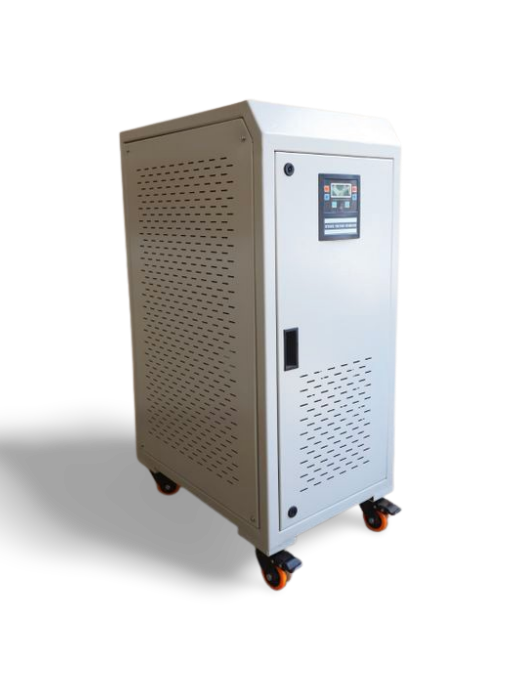

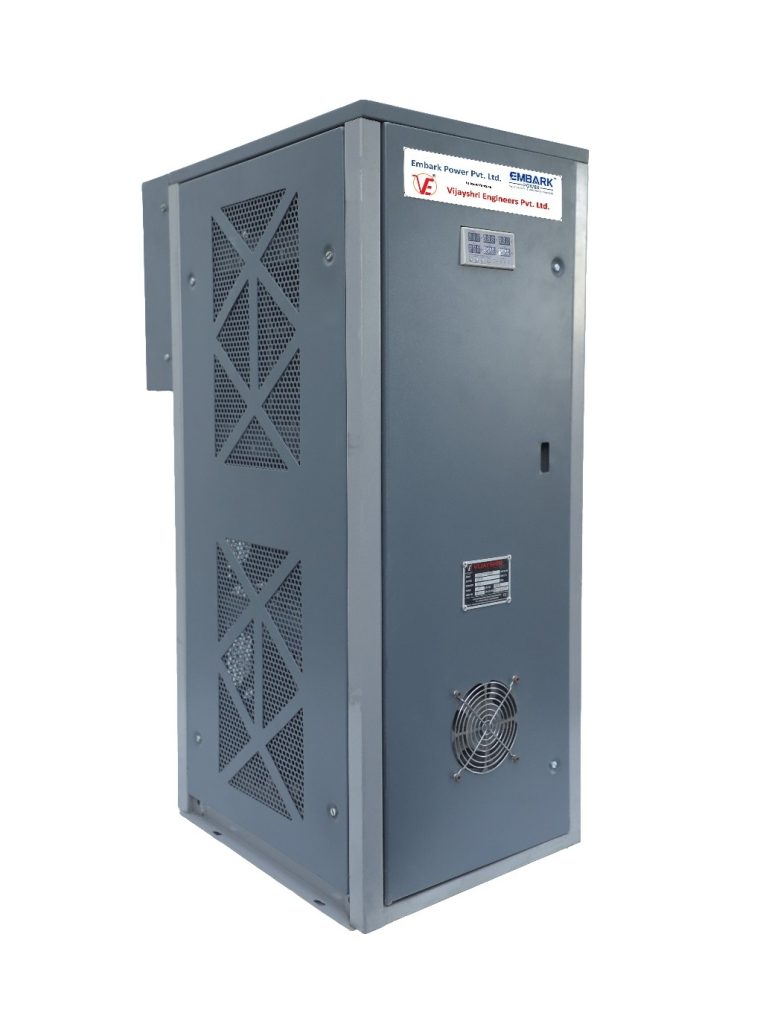

ESP-PLC Series Power Line Conditioners/ Static Voltage Regulators
• Outdoor Power Line Conditioners/ Static Voltage Regulators
• Indoor Power Line Conditioners/ Static Voltage Regulators

We also provide other related products like:
• ESP-SDAT with Step-Down transformer
• ESP-NPT with Neutral protection Transformer
• ESP-SSC Surge/Sag Corrector
• ESP-ILc with isolating Line Conditioners

Engine Architecture: This Static Voltage Regulator corrects following problems within 20 milliseconds.
1. Voltage Fluctuations
2. Surges & Spikes
3. Electrical Noises
4. Voltage Sags/Dips
5. Voltage Swell
6. Transients Voltages
7. EMI & RFI

BLOCK DIAGRAM

This Static Voltage Regulator is made by using high frequency IGBT (Insulated Gate Bi-Polar Transistor) through 20 KHz PWM inverter-based technology to maintain constant precise voltage.

ESP-PLC unit instantaneously corrects only essential difference voltage through IGBT, to achieve 240V precise constant voltage which adds or subtracts from the main of incoming power line. The input voltage is sensed by feedback control system through digital signal processor (DSP) and corrections are made by varying duty cycle of the PWM, during system regulation it is done electronically within 20 milli seconds without any step changes in output voltage.

Technical Specification for 3 Phase Power Line Conditioners-Static Voltage Regulators

Capacity

In KVA

»

15 KVA

20 KVA

25 KVA

30 KVA

40 KVA

50 KVA

60 KVA

75 KVA

In KW

»

12 KW

16 KW

20 KW

24 KW

32 KW

40 KW

48 KW

60 KW

In HP

»

16 HP

22 HP

27 HP

32 HP

43 HP

54 HP

65 HP

80 HP

In Amp

»

21 A

28 A

35 A

42 A

56 A

70 A

84 A

105 A

Approx. Dimension In mm

»

350W x 540D x 800H

380W x 585D x 840H

508W x 635D x 1000H

533W x 685D x 1000H

Approx. Weight

»

60-80Kgs.

100-120Kgs.

140-160Kgs.

180-200Kgs.



In KVA

»

100 KVA

110 KVA

120 KVA

130 KVA

150 KVA

160 KVA

180 KVA

200 KVA

Capacity

In KW

»

80 KW

88 KW

96 KW

104 KW

120 KW

128 KW

144 KW

160 KW



In HP

»

108 HP

118 HP

128 HP

140 HP

160 HP

171 HP

193 HP

215 HP



In Amp

»

140 A

153 A

167 A

181 A

208 A

222 A

250 A

278 A

Approx. Dimension In mm

»

635W x 710D x 1100H

650W x 730D x 1200H

700W x 750D x 1300H

750W x 800D x 1500H

Approx. Weight

»

300-330Kgs.

350-380Kgs.

400-430Kgs.

460-500Kgs.





















Technology

»

High Frequency 20 KHz IGBT – PWM Based Technology

Type of Connection

»

Star Connection – R, Y, B, N & G.

Type of System

»

Unbalanced 3 Phase 5 Wires

Standard Input Voltage Range

»

330V – 500V Phase to Phase & 186V – 277V Phase to Neutral

Standard Output Voltage

»

415V +/- 1% Phase to Phase & 240V +/- 1% Phase to Neutral

Output Adjustable

»

380V to 420V AC in 3 Phase

Optional Voltage Range

»

Will Be Available on as Per Requirements

Response Time

»

Within 10 Milli Second

Correction Speed

»

Very Fast, Instantaneously Within 20 Milli Second, i.e. Within One Waveform

Frequency Range

»

43Hz to 63Hz

Efficiency

»

≥ 97 % (With 20% To 100% Load Conditions)

Display

»

Digital Display, LCD Type – Micro Controlled Based

Readable Facility

»

Input & Output Voltage, Current and Frequency Readable

Trip And Restart

»

Auto / Manual

Nature Of Cooling

»

Natural- Air Cooled/ Fan Forced-Cooled

Duty Cycle

»

Continuous

Waveform Distortion

»

Nil

Ambient Temperature

»

0ºC to 50º Centigrade

Enclosure

»

IP 20, Class of Protection

Surge Protection

»

In-built Class 2 Surge Protection MOV Based

Noise Filter

»

In-built Through Filter Capacitor
